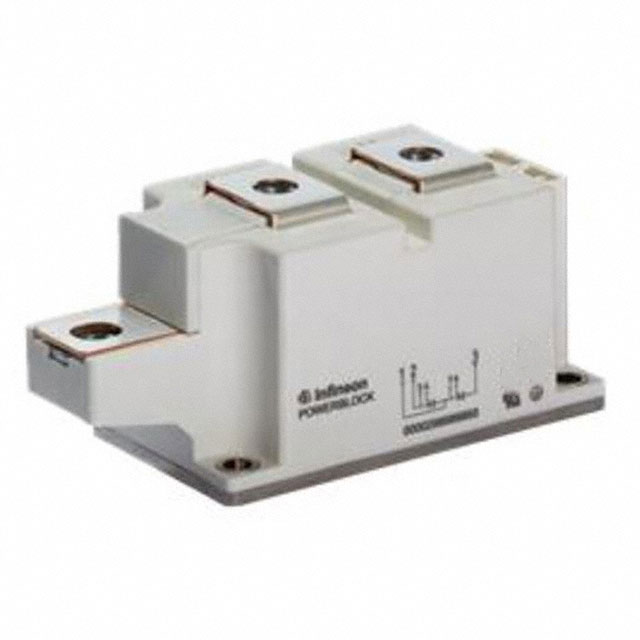

TD320N18SOFHPSA1
| Manufacturer Part Number | TD320N18SOFHPSA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Detailed Description | SCR MODULE 1.8KV 520A MODULE |
| Package | Module |
| In Stock | 837 pcs |
| Data sheet | Thyristor/Diode Module Label REV 1/Feb/2018Thyristor/Diode Module Label Update 19/Jan/2018TT320N18SOF |
Reference Price (In US Dollars)
| 1 | 12 |
|---|---|
| $46.341 | $45.496 |
Delivery Time
Components-House.com is a Reliable Stocking Distributor of Electronic Parts. We specialize in all Infineon Technologies series electronic components. We have 837 pieces of Infineon Technologies TD320N18SOFHPSA1 in stock available now. Request a quote from electronics components distributor at Components-House.com, our sales team will contact you within 24 hours.
RFQ Email: info@Components-House.net
RFQ Email: info@Components-House.net
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Voltage - Off State | 1.8 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Structure | Series Connection - SCR/Diode |
| Series | - |
| Package / Case | Module |
| Package | Tray |
| Operating Temperature | -40°C ~ 130°C |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | Chassis Mount |
| Current - On State (It (RMS)) (Max) | 520 A |
| Current - On State (It (AV)) (Max) | 320 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9500A @ 50Hz |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Base Product Number | TD320N18 |
